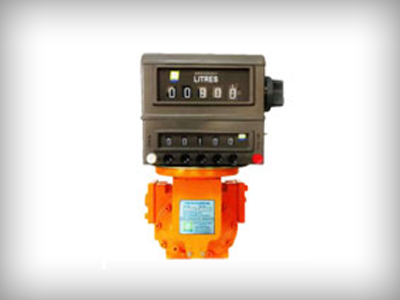

T550 Positive Displacement Flow Meters

T550 Positive Displacement Flow Meters
The T-550 is an efficient and highly accurate Positive Displacement Flowmeter. Proven design of Tri-rotor ensures minimal wear and longer service life.


DESIGN FEATURES

• High Accuracy
• Lack of internal friction ( No metal to metal contact )
• Low pressure drop
• Bi-directional liquid flow
• Suitable for wide range of liquid
• Meets world wide Metrological Standards
• Mechanical and Electrical readout
• Long service life

PRINCIPLE OF OPERATION

The T-550 flow meter has a simple and robust design. It consists of a housing and three rotors. The rotors are supported by bearings plates. The calibrator captures the rotor rotation in a calibrated manner and transmits to a counter.

APPLICATIONS

• Truck meter / Refuellers / Aviation Fuel Bowsers.
• Tank Truck / Barrel Filling
• Blending and Dispensing in Chemical and Process industry
• Marine Boat Loading / Unloading

SPECIFICATIONS

Type
Positive displacement rotary vane
Sizes & Capsule :
2" (50mm)
Flow Range :
Upto 550 LPM.
Standard Unit :
Liters (Gallon Optional)
Repeatability :
0.02%
Working Temperature :
(-) 30 °C to 70 °C
Connections :
Flanged
Pressure rating :
10.5 Bar (150 PSI)
( High Pressure Build Optional )
